7BBL glycol jacketed conical fermenters used beer machines
7BBL glycol jacketed conical fermenters used beer machines
Product Description:
7BBL glycol jacketed conical fermenters used beer machines
Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer.
Grain fermenters can be individually temperature controlled through glycol jackets(single wall tank is available) and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc.
7BBL conical fermenters configuration:
|
1 |
Material |
SUS304 |
|
2 |
Exterior shell |
2mm |
|
3 |
Interior shell |
3mm |
|
4 |
Insulation material |
PU |
|
5 |
Insulation TH |
80mm |
|
6 |
Top type |
Dished head |
|
7 |
Manhole Type |
Side |
|
8 |
Manhole size |
Φ350 |
|
9 |
Inner cone |
60 degree |
|
10 |
CIP pipe Diameter |
Φ32 |
|
11 |
CIP ball(1) |
360º Rotating spray ball |
|
12 |
Temperature sense |
PT100 sensor |
|
13 |
Thermowell diameter |
Φ10 |
|
14 |
Inner Polishing |
0.2-0.4micron |
|
15 |
Design pressure |
0.2Mpa |
|
16 |
Cooling type |

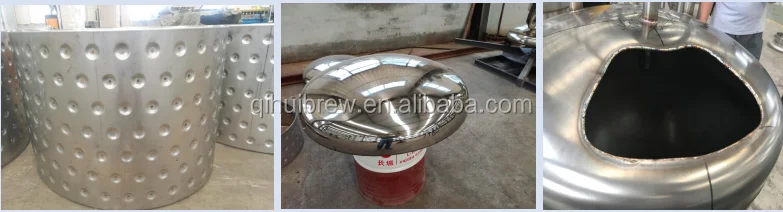

Dimple cooling jacket |
|
17 |
Cooling jacket inlet |
G3/4 |
|
18 |
Cooling jacket outlet |
G3/4 |
|
19 |
Pressure control |
Mechanical pressure relief valve |
|
20 |
Pressure gauge |
1pc |
|
21 |
Rotating Racking arm |
1pc |
|
22 |
Sample port |
1pc |
|
23 |
Drain outlet |
1pc |
|
24 |
Safety valve (PVRV) |
1pc |
|
25 |
Support leg |
4*SUS 304 |
|
26 |
Adjustable bolt |
4pcs |
Company information:
Welcome to contact us and visit our factory. We will try our best to give you best service.
Notes:
1.Shipping and Packing:
All units will be loaded in 40HQ containers, quantity is according to real order.
2.Payment
Payment method is 30% T/T pay in advance, 70% T/T pay before delivery.
3. Delivery time
The manufacturing time of equipment is 45 working days since receiving the advance payment from buyer.
