500L Beer Brewery equipment Cooling Jacketed Conical Fermenter
500L Beer Brewery equipment Cooling Jacketed Conical Fermenter
500L Cooling Jacketed Conical Fermenter
1. Introduction of cylinder conical tanks beer brewing equipment
Cylinder conical tanks are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), fermentation tanks and conical fermenter
Primary fermentor or unitanks as they are used both for fermenting and lagering.
Fermenting is the process during which the yeast transforms the wort into beer.
Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Our stainless steel fermenters can be individually temperature controlled through glycol jackets
and are mostly equipped with accessories such as overpressure and under pressure valve,
CIP cleaning jet, sanitary sample valve, manhole,etc
2. Specification of conical fermentation tank beer brewery equipment
Fermentation unit | cylinder conical tanks | 25% head space | Dimple cooling jacket on cone and bottom |
Top center manway | |||
Tri clamp CIP ball | |||
60 degree cone bottom | |||
Perlick style full sanitary sampling valve | |||
Carbonation port and level tube for special request |
3. Configuration of cylinder conical Fermentation tanks micro beer brewing plant
Capacity: 500L(+25% Headspace minimum)
Material:SUS304/316
Pressure : Atmospheric
Accessories: butterfly valve
Interior Finish: Overall polishing to 0.2~0.4μm without dead corner
Inltet and outlet
Four layer
Thickness:2mm for exterior shell, 80mm Polyurethane for insulations, dimple cooling jacket , 3mm for interior jacket
Mirror polished
Conical bottom with tri-clamp top
Dished head and 60 degree cone bottom

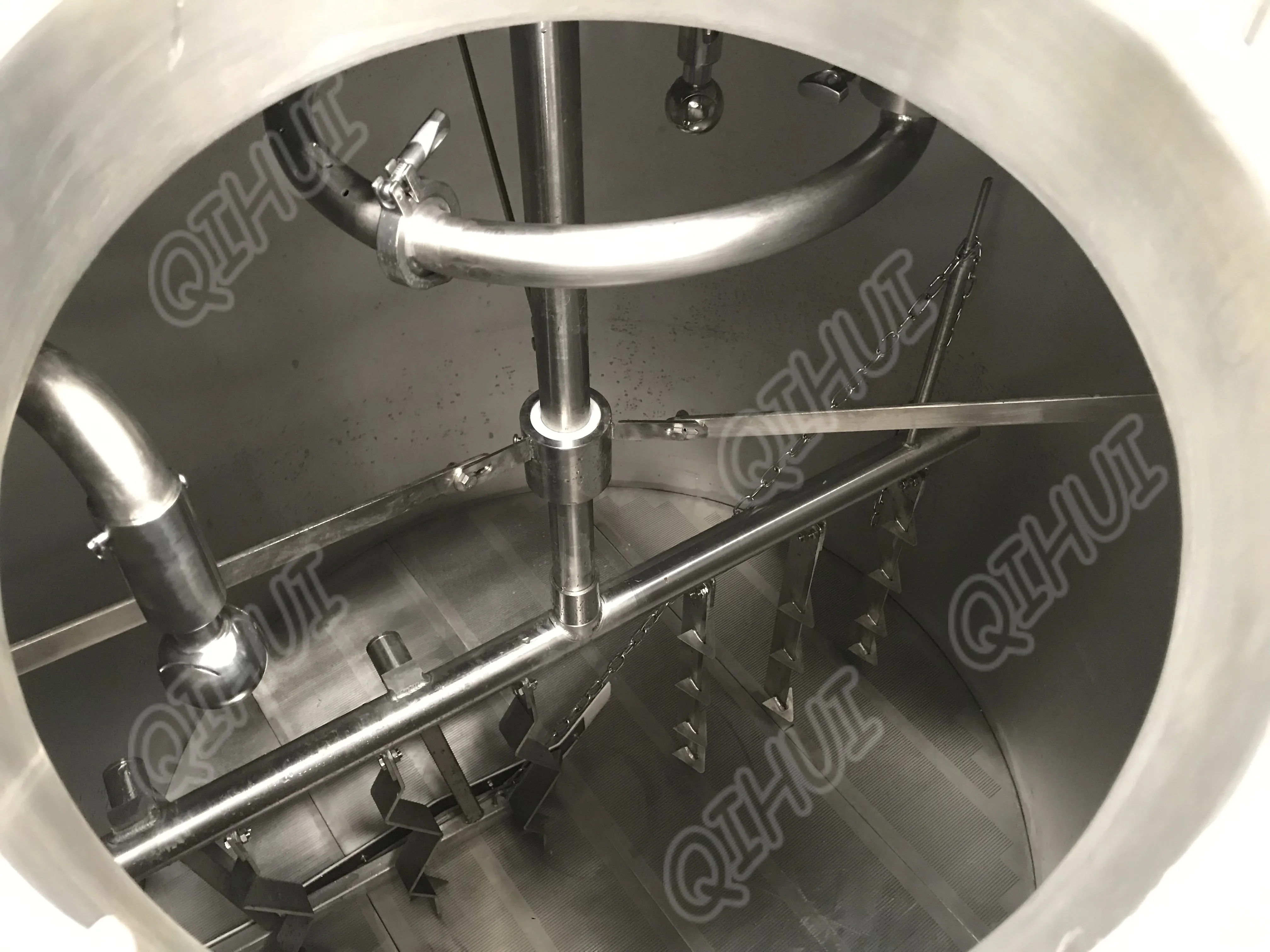

CIP arm with 360° coverage CIP spraying ball
4.Detailed configurations list of 500L Fermentation tank
1 |
Total capacity |
680L |
2 |
Effective capacity |
500L |
3 |
Size |
D960*H2290mm |
4 |
Material |
SUS304 |
5 |
Exterior shell |
2mm |
6 |
Interior shell |
3mm |
7 |
Insulation material |
Polyurethane |
8 |
Insulation TH |
60mm |
9 |
Top type |
Dished head |
10 |
Manhole Type |
Top center |
11 |
Manhole size |
Round pressure manhole φ350mm |
12 |
Bottom cone |
60 degree |
13 |
CIP pipe Diameter |
Φ32 |
14 |
CIP ball(1) |
360º Rotating spray ball |
15 |
Temperature sense |
PT100 sensor |
16 |
Thermowell diameter |
Φ10 |
17 |
Inner Polishing |
0.2-0.4micron |
18 |
Design pressure |
0.3Mpa |
19 |
Cooling type |
Dimple cooling jacket |
20 |
Cooling area |
2 sqm |
21 |
Cooling jacket inlet |
G3/4 |
22 |
Cooling jacket outlet |
G3/4 |
23 |
Pressure control |
Mechanical pressure relief valve |
24 |
Pressure gauge |
1pc |
25 |
Rotating Racking arm |
1pc φ51mm |
26 |
Sample port |
Φ38 |
27 |
Drain outlet |
Φ51 |
28 |
Safety valve (PVRV) |
Φ51 |
30 |
Hops port Φ102 |
(without) |
31 |
Carbonation port TC with stone |
Options |
32 |
Liquid level display |
options |
