two vessel brewery equipment/beer brewing machine 500L

two vessel brewery equipment/beer brewing machine 500L

Page view

two vessel brewery equipment/beer brewing machine 500L

没有此类产品
Product description

  500L two vessel brewery equipment

Product Description

1. Main Configurations of Brewhouse System

(1).Mashing tun
Mash tun is a vessel used in the mashing process to convert the starches in crushed grains
into sugars for fermentation.
Mash tuns are insulated to maintain a constant temperature.
The mash tun can be single function or can also have a false bottom and spigot so that
the sparging process can be done in the same vessel.
Steam jacket design will allow The brewhouse systems are designed to do both decoction

(2). Lauter tun
The lauter tun is used for filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun.
The lauter tun typically has the same capacity as the cooking tun and can also be made out of stainless steel or copper cladding. It has a design with a false bottom in stainless steel vwire and a raking gear that has the function of an agitator, a rake and a spent gain remover.
This is a very unique and helpful tool because after filtering the spent grains
will be automatically removed from the lauter tun, saving a lot of time and energy of the brewmaster.
Furthermore the lauter tun can be equipped with additional accessories such as sight glasses,
CIP jets for simplifying the lautering.



(3). Boiling Kettle
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a large tank known as a brew kettle. The boiling process is where chemical and technical reactions take place, including sterilization of the wort to remove unwanted bacteria, releasing of hop flavours, bitterness and aroma compounds throug isomerization, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort.



(4).Whirlpool Tun
At the end of the boil, the hopped wort settles to clarify in a vessel called a "whirlpool" where there is a tangential inlet of wort. Thus, a vortex is formed when the wort is infused along the arc inside surface, so that the more solid particles in the wort are separated out. Whirlpool can happen in the kettle because there is no obstacle inside the kettle.



Various combination of brewhouse
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing, lautering, boiling,whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews incertain time, brewing method etc.
We accept special design for these variations.



2 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank



3 Vessel Brewhouses
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun

4 Vessel Brewhouses
Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool

5 Vessel Brewhouses
Mash Tun + Lauter Tun + Boil Kettle + Whirlpool+ Holding Kettle



Specification
                                            500L Beer brewing equipment
Grain Milling Unit Rolling Mill 300-500 kg/h





Brewhouse Unit


Mash/Lauter tun
Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring
Anti-rinser

Kettle/Whirlpool Tun
Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack
Hot Liquor Tank Steam Jacket heating/direct gas fired heating/electric heating




Fermenter & Brite Tank




Fermenter
Glycol cooling jacket on cone and bottom;
Side or top manway;
CIP arm and CO2 blow off arm;
Germany import Kieselmann Mechanical relief valve;
Shockproof pressure gauge;
Rotating racking arm;
Dry hopping port;
Carbonation stone;
Sight level.

Glycol Chilling Unit
Glycol Tank
Glycol Chiller
Insulated conical top and sloped bottom
Dimple plate on side wall

Control Unit
Brewing and fermetation process Controlling
Manual button control panel or PLC control with touch screen for special
CIP Unit
Alkali Tank;
Sterilization Tank;
Pump&Control.
Electric heating element inside



Product Overviews

7



10bbl brewery brewhouse


1

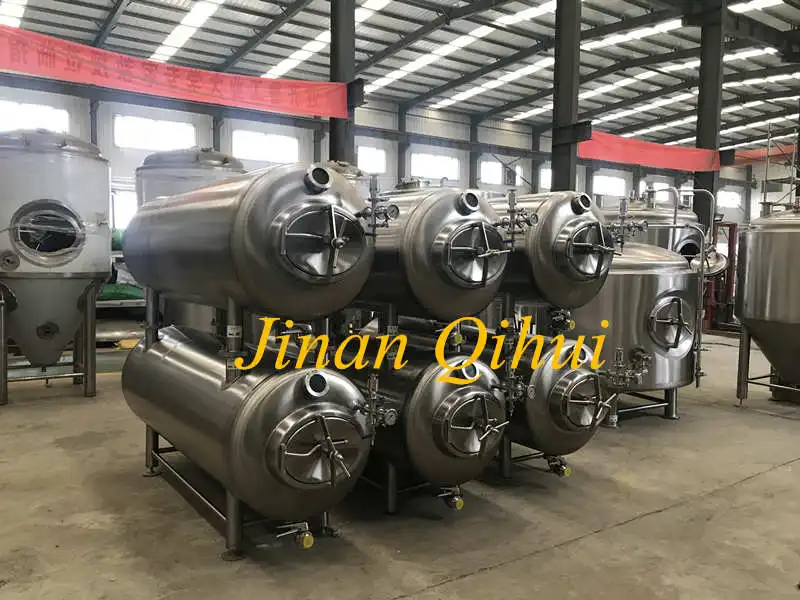

500L Brite tank

_201901250954002



10bbl fermenter



Our service



a

Free consultation service before, during and after sales

b

Project planning and design services

c

Free debugging instruction of equipment until everything is functional

d

Management of equipments' long distance shipping from our factory to your port

e

Training of equipment maintenance and operating personally

f

New production techniques



g

Provide 5 years complete warrantee for main parts and life-time maintenance service;

We are responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free



Trade Terms&Payment

Payment: By Alibaba Trade Assurance, T/T or L/C

We strongly recommend Alibaba Trade Assurance!

30% deposit and 70% balance before shipment

Delivery time: 10-50 working days, subject to the capacity of the equipment

Terms of the delivery: FOB, CIF

MOQ: 1 Set

Packaging&Shippiing

Jinan Qihui Beer Equipment Co.,Ltd

1.LCL/FCL(20GP/40GP/40HQ)

2.Packed with plastic film in wooden case or fixed with iron frame

3.Up to export standard, suitable for delivery

4.Customer's requirements avaliable
