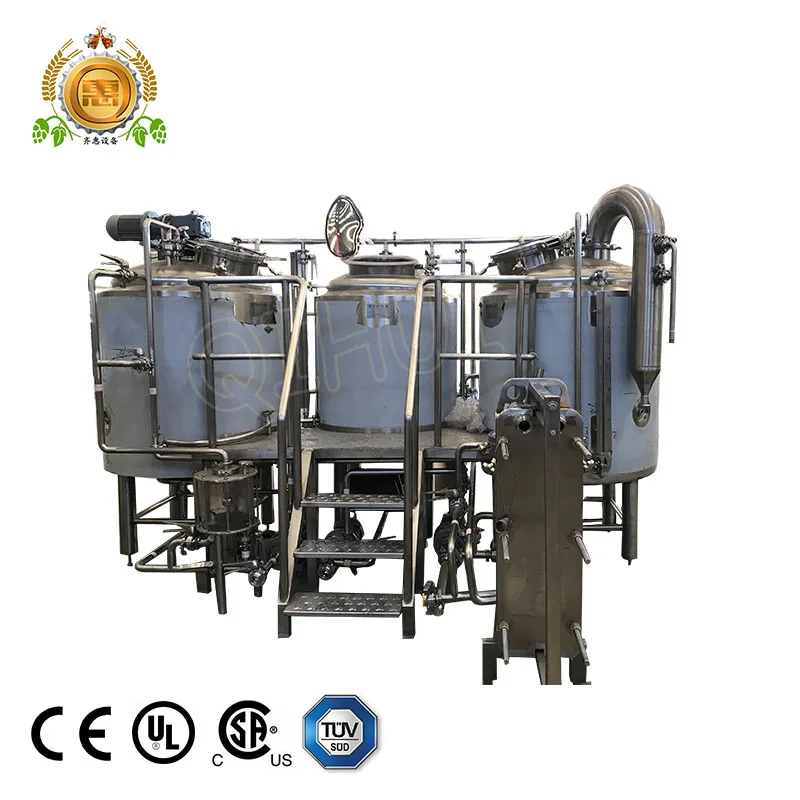

5HL complete micro brewery for beer pub

5HL complete micro brewery for beer pub

Page view

5HL complete micro brewery for beer pub

没有此类产品
Product description

5HL complete micro brewery  for beer pub

5HL complete micro brewery  for beer pub



No.

System

Equipments components

 Specification

Quantity

1

Milling system

Malt Mill

200kgs/H

1

2



















Mashing system



















Mash/lauter tank

500L

1

Kettle/whirlpool tank

500L

1

Hot liquid tank

500L

1

Mash centrifugal pump

3T/H

2

Hops filter tank

2L

1

Wort balance tank

25L

1

Plate heat exchanger

6m2

1

Wort food hose





Assorted





Assorted





Pipeline and  valves

Work platform

3





Fermenting system





Fermenter

500L

6

Brite tank

500L

2

Yeast adding tank

10L

1

4











Glycol cooling system











Glycol liquid tank

1000L

1

 Chiller

3HP

2

Glycol liquid pump

3T/H

1

 Glycol liquid pipeline

Assorted

Assorted

5

Control system

PID or PLC control  (UL)

Assorted

1

6







CIP system







Alkali tank

100L

1

Sterilization tank

100L

1

CIP control cabinet

Digital control

1

CIP pump+pipeline valve

Assorted

1

7

Accessories

Spare parts (Extra)

Assorted

        1

1. Brewhouse system

-Two-Four vessles or combined system.

-Capacity 100L-5000L, 1bbl-40bbl.

- Steam heated, electrical heated or natural gas

-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.

-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.

-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.

-Insulated HLT and CLT with the pipelines and pumps

-External wort balance tank, hops filter, heat exchanger. Wort oxygenation system, working platform.

-All the necessary pipelines and pumps.

2. Fermentation System- Beer Fermenter and brite tanks

-Usage: fermentation, maturation and storage

1-Domed head and conical bottom

2-Material: SUS 304, inner thickness 3mm, outer thickness1.5mm, Insulation: PU=80mm

3-Top manway

4-Cone bottom, 60 degree

5-Pressure gauge

6-Safety/vacuum valve

7-Working pressure: 0.15Mpa

8-Testing pressure: 0.3Mpa

9-Cooling jackets on both cylinder and cone

10-Inside 360 rotating CIP ball

11. Rotating Racking arm

12-Thermowell, 10mm

13-Temperature sensor, Model: PT100

14-Wort piping and butterfly valves, ø32mm

15-Drainage piping and butterfly valve, ø38mm

16-3 or 4 legs with adjustable bolts

-carbonation stone (optional)

- dry hops port (optional)

5HL complete micro brewery  for beer pub

3.Cooling System

Description: Air-cooled type chiller + Ice water tank or Glycol tank

Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank

4.Control System

-PID or PLC system

-SIEMENS program S7-200, Siemens touch screen.

-Penumatic valves for optional

5HL complete micro brewery  for beer pub

5. CIP system

1) Alkali tank with heating function

2) Sterilization tank

3) CIP pump

4) Control cabinet

5HL complete micro brewery  for beer pub
